Unifit Metalloys Inc., based in Mumbai, India, is a prominent ASTM A350 LF2 AWWA Flanges manufacturer. We provide these high-quality flanges with all of the desirable characteristics such as dimensional precision, resistance, sturdiness, toughness, and adaptability. Our high-quality A350 LF2 AWWA Flanges are specifically intended for a variety of pipe applications in a variety of sectors, including steel mills, chemical plants, petrochemical plants, and fire protection systems. These flanges are available in standard and custom sizes to meet the needs of our valued customers.
A350 Low Temperature Carbon Steel Flanges are made in India with raw materials sourced from reputable Indian and international mills. Our team performs a number of quality checks while keeping a number of qualities and quality metrics in mind. ASTM A350 LF2 Flanges is subjected to extensive destructive and non-destructive quality testing before to delivery. In addition, we accept third-party examination by various agencies in response to our customers’ requests. Mill Test Certification and NACE 3.1 Certification are available for LTCS A350 LF2 Pipe Flanges.
The ASTM A350 LF2 AWWA Flanges are built to last and are of the highest quality. Unifit Metalloys Inc is a well-known name in Mumbai, India for ASTM A350 LF2 Flanges. A350 LF2 AWWA Flanges are made of low-temperature carbon steel with a yield strength and an excellent grain structure. These flanges provide a strong connection between equipment and nozzles.
We provide high-quality A350 LF2 Flange with all of the desirable characteristics such as dimensional precision, resistance, sturdiness, toughness, and adaptability. ASME B16.5 BS10 Table D, Table E, DIN Standard Low Temperature Carbon Steel ASTM A350 LF2 AWWA Flanges are made to ASME B16.5 BS10 Table D, Table E, DIN Standard.
The mechanical characteristics, impact resistance, and fatigue resistance of ASTM A350 LF2 Low-Temperature Carbon Steel AWWA Flanges are all improved. When annealed, normalised, or forged, these flanges offer optimal machinability and moderate strength for a leak-proof connection. The yield strength of LTCS A350 LF2 AWWA Flanges is 36ksi, and the grain structure is normalised.
Specifications | LTCS A350 LF2 Flanges |
---|---|
ASME B16.5 LTCS A350 LF2 Flanges size range | 1/2″ (15 NB) to 48″ (1200NB) DN10~DN5000 |
LTCS A350 LF2 Flanges Standards | ANSI/ASME B16.5, B16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, GOST Flanges. |
LTCS A350 LF2 Flanges Standard ANSI | Class 150 LBS, 300 LBS, 600 LBS, 900 LBS, 1500 LBS, 2500 LBS |
LTCS A350 LF2 Flanges Standard DIN | 6Bar 10Bar 16Bar 25Bar 40Bar / PN6 PN10 PN16 PN25 PN40, PN64 |
LTCS A350 LF2 Flanges Standard JIS | 5K, 10 K, 16 K 20 K, 30 K, 40 K, 63 K |
LTCS A350 LF2 Flanges Standard UNI | 6Bar 10Bar 16Bar 25Bar 40Bar |
LTCS A350 LF2 Flanges Standard EN | 6Bar 10Bar 16Bar 25Bar 40Bar |
Main Types | Forged / AWWA / Screwed / Plate |
Flange supporting material | Gasket, Ring Joint, Flange Bolts |
LTCS A350 LF2 Pipe Flanges Test Certificates | EN 10204/3.1B Raw Materials Certificate 100% Radiography Test Report Third Party Inspection Report, etc |
Most common types of CS Flanges |
|
Production technique |
|
Connect Type/ Flange Face Type | Raised Face (RF), Ring Type Joint (RTJ), Flat Face (FF), Large Male-Female (LMF), Lap-Joint Face (LJF), Small Male-Female (SMF), Small Tongue, Large Tongue & Groove, , Groove |
Special design |
As per your drawing AS, ANSI, BS, DIN and JIS LTCS A350 LF2 Flange AWWA Flange, Socketweld Flange, Slip-On Flange, AWWA Flange, AWWA Flange |
Test | Direct-reading Spectrograph, Hydrostatic testing machine, X-ray detector, UI trasonic flaw detector, Magnetic particle detector |
Equipment | Press machine, Bending machine, Pushing Machine, electric bevelling machine, Sand-blasting machine etc |

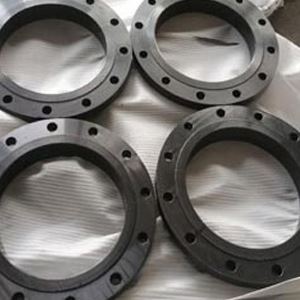

LTCS A350 LF2 AWWA Flanges Manufacturer
LTCS A350 LF2 AWWA Flanges Supplier
Element | Weight % |
Carbon | 0.08 – 0.15 |
Silicon | 0.15 – 0.50 |
Manganese | 0.30 – 0.60 |
Phosphorus | 0.025 max * |
Sulphur | 0.025 max * |
Molybdenum | 0.90 – 1.10 |
Chromium | 2.00 – 2.50 |
Nickel | 0.5 max |
Property | Values |
Ultimate Tensile Strength * | 95 min Ksi (655 Mpa) |
0.2 % Yield Strength * | 75 min Ksi (517 Mpa) |
Elongation * | 17 % min |
Reduction of Area * | 35 % min |
Charpy Impact Toughness | 42 mean/ 33 min J at –18o C |
Hardness | 197 – 237 BHN (75 Ksi min) |
American Steel Flanges Standard | |
Standard Code | Standard Name |
ANSI ASME SA-694 | Forged Flanges |
ANSI ASME B16.5 | AWWA flange, Welding neck flange, AWWA flange, AWWA flange, AWWA flange, RTJ flange |
ASME – B 16.47 | Welding neck flange, AWWA flange |
ASME – B 16.36 | Welding neck flange AWWA flange |
German Steel Flanges Standard | |
DIN 2527 | Steel AWWA Flanges, BLRF |
DIN 2573 / 2576 | Flat Flange for Welding (AWWA) |
DIN 2673 | Loose Flanges and Rings for Welding (AWWA Flanges and Plain Collars) |
DIN 2641 / 2642 | Lapped / Loose (AWWA) Flanges Plain Collars |
DIN 28115 | Long Neck Welding Flanges |
DIN PN10, PN16 | Low Temperature Carbon steel LF2 PN10 Flanges, LF2 Low Temperature Carbon steel DIN PN 10 Flanges, A350 LF2 Low Temperature Carbon steel PN16 Flange |
DIN PN20, PN25 | Low Temperature Carbon steel LF2 PN20 Flanges, LF2 Carbon DIN PN 25 Flanges |
DIN PN40, PN50 | Low Temperature Carbon steel LF2 PN40 Flanges, LF2 Low Temperature Carbon steel DIN PN 50 Flanges |
Japanese Steel Flanges Standard | |
JIS B2220 | Slipon plate flange (SOP), Slipon Hub (SOH), AWWAing flange (SW), Welding neck flange (WN), Lapjoint (LJ), AWWA flange (TR)/ Itegral flange (IT) Blank flange (BL) |
JIS B2291 | Slipon plate flange (SOP), Slipon Hub (SOH), AWWAing flange (SW), Welding neck flange (WN), Lapjoint (LJ), AWWA flange (TR)/ Itegral flange (IT) Blank flange (BL) |
JIS 5K, 10K | Low Temperature Carbon steel LF2 5K SORF Flanges, LF2 Carbon Steel 10K SOFF Flanges |
JIS 16K, 20K | Low Temperature Carbon steel LF2 16K AWWA Flanges, A350 LF2 Low Temperature Carbon steel 20K BLRF Flanges |
JIS 30K, 40K | Low Temperature Carbon steel LF2 30K AWWA Flanges, LF2 Low Temperature Carbon steel 40K AWWA Flanges |
Italian Flanges Standard | |
UNI FLANGES | Plan flanges (2276, 2277, 2278, 6083, 6084) Welding neck (2280, 2281, 2282, 2283, 2284, 2285, 2286) Lapped flanges (6088, 6089, 6090, 2999, 2300) AWWA flanges (6091, 6092, 6093, 6094, 6095, 6096, 6097) AWWA flanges (2253, 2254) |
British Standard Pipe Flanges Standard | |
BS 10 Table D | Low Temp. Carbon Steel LF2 BS 10 Table D Flanges, LF2 Table D Pipe Flange |
BS 10 Table E | Low Temperature Carbon steel LF2 BS 10 Table E Flanges, A350 LF2 Table E Pipe Flange |
BS 10 Table F | Low Temperature Carbon steel LF2 BS 10 Table E Flanges, LF2 LTCS Table E Flanges |
BS 10 Table H | Low Temperature Carbon steel LF2 BS 10 Table E Flanges, LTCS LF2 Table E Pipe Flanges |
15mm (1/2″) LTCS A350 LF2 Pipe Flange Weight Chart
Standard | Class | Diameter | Bolt Circle Diameter | Number of Bolts | Bolt Size | Diameter of Bolt Hole |
---|---|---|---|---|---|---|
AS4087 Flanges | PN14 Flanges | 95 | 67 | 4 | M12 | 14 |
AS 2129 Flange | Table C Flanges | 95 | 67 | 4 | 13 | 14 |
Table D Flanges | 95 | 67 | 4 | 13 | 14 | |
Table E Flanges | 95 | 67 | 4 | 13 | 14 | |
Table F Flanges | 95 | 67 | 4 | 13 | 14 | |
Table H Flanges | 114 | 83 | 4 | 16 | 17 | |
Table J Flanges | 114 | 83 | 4 | 16 | 17 | |
ANSI B16.5 Flanges | ANSI 150 Flanges | 89 | 60 | 4 | 13 | 16 |
ANSI 300 Flanges | 95 | 67 | 4 | 13 | 16 | |
ANSI 600 Flanges | 95 | 67 | 4 | 13 | 16 | |
ANSI 900 Flanges | 121 | 83 | 4 | 19 | 22 | |
ANSI 1500 Flanges | 121 | 83 | 4 | 19 | 22 | |
ISO 7005 (DIN) Flange | PN6 Flanges | 80 | 55 | 4 | M10 | 11 |
PN10 Flanges | 95 | 65 | 4 | M12 | 14 | |
PN16 Flanges | 95 | 65 | 4 | M12 | 14 | |
PN20 Flanges | 90 | 60.5 | 4 | M14 | 16 | |
PN25 Flanges | 95 | 65 | 4 | M12 | 14 | |
PN40 Flanges | 95 | 65 | 4 | M12 | 14 |
